Metadata Backup & Recovery

tip
  • JuiceFS v0.15.2 started to support manual backup, recovery and inter-engine migration of metadata.
  • JuiceFS v1.0.0 starts to support automatic metadata backup

Manual Backup

JuiceFS supports multiple metadata storage engines, and each engine has a different data management format internally. To facilitate management, JuiceFS provides dump command which allows to write all metadata in a uniform format to JSON file for backup. Also, JuiceFS provides load command which allows to restore or migrate backups to any metadata storage engine. For more information on the command, please refer to here.

Metadata Backup

Metadata can be exported to a file using the dump command provided by the JuiceFS client, e.g.

juicefs dump redis://192.168.1.6:6379 meta.dump

By default, this command starts from the root directory / and iterates deeply through all the files in the directory tree, and writes the metadata information of each file to a file in JSON format.

note

juicefs dump only guarantees the integrity of individual files and does not provide a global point-in-time snapshot. If transactions are being written during the dump process, the final exported files will contain information from different points in time.

Redis, MySQL and other databases have their own backup tools, such as Redis RDB and mysqldump, etc. Still, you need to back up metadata regularly with the corresponding backup tool.

The value of juicefs dump is that it can export complete metadata information in a uniform JSON format for easy management and preservation, and it can be recognized and imported by different metadata storage engines. In practice, the dump command should be used in conjunction with the backup tool that comes with the database to complement each other.

note

The above discussion is for metadata backup only. A complete file system backup solution should also include object storage data backup at least, such as offsite disaster recovery, recycle bin, multiple versions, etc.

Metadata Recovery

tip

JSON backups can only be restored to a newly created database or an empty database.

Metadata from a backed up JSON file can be imported into a new empty database using the load command provided by the JuiceFS client, e.g.

juicefs load redis://192.168.1.6:6379 meta.dump

This command automatically handles conflicts due to the inclusion of files from different points in time, recalculates the file system statistics (space usage, inode counters, etc.), and finally generates a globally consistent metadata in the database. Alternatively, if you want to customize some of the metadata (be careful), you can try to manually modify the JSON file before loading.

tip

To ensure the security of object storage secretKey and sessionToken, the secretKey and sessionToken in the backup file obtained by juicefs dump is changed to "removed". Therefore, after the 'juicefs load' is executed to restore it to the metadata engine, you need to use juicefs config --secret-key xxxx META-URL to reset secretKey.

Metadata Migration Between Engines

tip

The metadata migration operation requires newly created database or empty database as the target database.

Thanks to the universality of the JSON format, the JSON file can be recognized by all metadata storage engines supported by JuiceFS. THus, it is possible to export metadata information from one engine as a JSON backup and then import it to another engine, implementing the migration of metadata between different types of engines. For example,

$ juicefs dump redis://192.168.1.6:6379 meta.dump
$ juicefs load mysql://user:password@(192.168.1.6:3306)/juicefs meta.dump

It is also possible to migrate directly through the system's Pipe.

$ juicefs dump redis://192.168.1.6:6379 | juicefs load mysql://user:password@(192.168.1.6:3306)/juicefs
caution

To ensure consistency of the file system content before and after migration, you need to stop transaction writing during the migration process. Also, since the original object storage is still used after migration, make sure that the old engine is offline or has read-only access to the object storage before the new metadata engine comes online; otherwise it may cause file system corruption.

Metadata Inspection

In addition to exporting complete metadata information, the dump command also supports exporting metadata in specific subdirectories. The exported JSON content is often used to help troubleshoot problems because it allows users to view the internal information of all the files under a given directory tree intuitively. For example.

$ juicefs dump redis://192.168.1.6:6379 meta.dump --subdir /path/in/juicefs

Moreover, you can use tools like jq to analyze the exported file.

note

Please don't dump a directory that is too big in an online system as it may slow down the server.

Automatic Backup

Starting with JuiceFS v1.0.0, the client automatically backs up metadata and copies it to the object storage every hour, regardless of whether the file system is mounted via the mount command or accessed via the JuiceFS S3 gateway and Hadoop Java SDK.

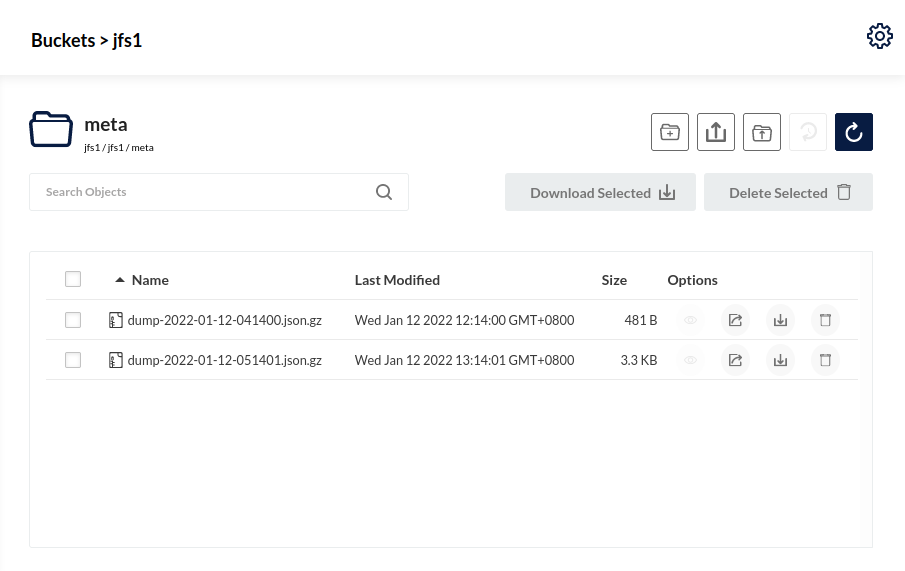

The backup files are stored in the meta directory of the object storage. It is a separate directory from the data store and not visible in the mount point and does not interact with the data store, and the directory can be viewed and managed using the file browser of the object storage.

tip

Automatic backup use Gzip compression, the backup files end with .gz and need to be decompressed with the gzip -d command first.

By default, the JuiceFS client backs up metadata once an hour. The frequency of automatic backups can be adjusted by the --backup-meta option when mounting the filesystem, for example, to set the auto-backup to be performed every 8 hours.

sudo juicefs mount -d --backup-meta 8h redis://127.0.0.1:6379/1 /mnt

The backup frequency can be accurate to the second and it supports the following units.

  • h: accurate to the hour, e.g. 1h.
  • m: accurate to the minute, e.g. 30m, 1h30m.
  • s: accurate to the second, such as 50s, 30m50s, 1h30m50s;

It is worth mentioning that the time cost of backup will increase with the number of files in the filesystem. Hence, when the number is too large (by default 1 million) with the automatic backup frequency 1 hour (by default), JuiceFS will automatically skip backup and print the corresponding warning log. At this point you may mount a new client with a bigger --backup-meta option value to re-enable automatic backups.

For reference, when using Redis as the metadata engine, backing up the metadata for one million files takes about 1 minute and consumes about 1GB of memory.

Automatic Backup Policy

Although automatic metadata backup becomes a default action for clients, backup conflicts do not occur when multiple hosts share the same filesystem mount.

JuiceFS maintains a global timestamp to ensure that only one client performs the backup operation at the same time. When different backup periods are set between clients, then it will back up based on the shortest period setting.

Backup Cleanup Policy

JuiceFS periodically cleans up backups according to the following rules.

  • Keep all backups up to 2 days.
  • For backups older than 2 days and less than 2 weeks, keep 1 backup for each day.
  • For backups older than 2 weeks and less than 2 months, keep 1 backup for each week.
  • For backups older than 2 months, keep 1 backup for each month.
